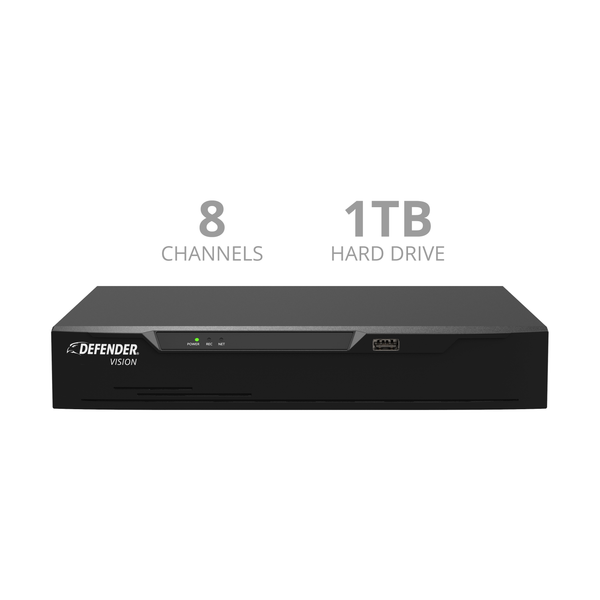

4K Vision 8 Channel DVR with 1TB HDD

$486
4K Vision 8 Channel DVR with 1TB HDD

4K Vision 8 Channel DVR with 1TB HDD

$486
description
Connect up to 8 cameras to this Genuine, Authentic and Certified 1TB NVR, compatible with Defender Sentinel 4K Security System. Please Note: Full functionality can only be guaranteed when connected to the Defender 4K security cameras.

Technical Specifications


Model Number

DV8MP1T8DVR


What's Included

1 x 8 Channel DVR with 1 TB HDD

1 x Ethernet Cable

1 x DVR USB Mouse

1 x DVR Power Supply

1 x Quick Start Guide


Video and Audio

Analog Video Input: 8-ch BNC
AHD Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
TVI Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
CVI Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
CVBS Input: PAL/NTSC
IP Video Input: 8+4, each channel up to 5MP
Audio In/Out: 4/1
Two-way Talk: N/A
HDMI Output: 3840×2160, 1920×1080, 1280×1024,1024×768
VGA Output: 1920×1080, 1280×1024,1024×768
CVBS Output: NA
Synchronous Playback: 8/4/1


Recording

Encoding Resolution: 8MP, 5MP, 4MP, 1080P, 720P, 960H, D1, CIF
Frame Rate: 8MP@7fps, 4MP@15fps, 1080P@30fps
Video Bit Rate Main Stream: 128Kbps~4096Kbps, Sub stream: 16Kbps~1024Kbps
Dual Stream Support


Network

Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
Protocols: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
Remote Users: 4


Hard Disk

SATA: 1 SATA interfaces
Capacity: Up to 8TB capacity for each disk


Interface

Alarm: In/Out N/A
USB Interface: 2 ports (USB 2.0 x 2)


General

Power Supply: DC12V/2A
Power Consumption: Max 15W (without HDD)
Working Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
Working Humidity: Less than 90% RH
Dimensions (W×D×H): 255 x 244 x 44 mm (10.04 × 9.61 × 1.73 inch)
Net Weight: 0.9 kg (1.98 lb)
FCC & Industry Canada Certified
