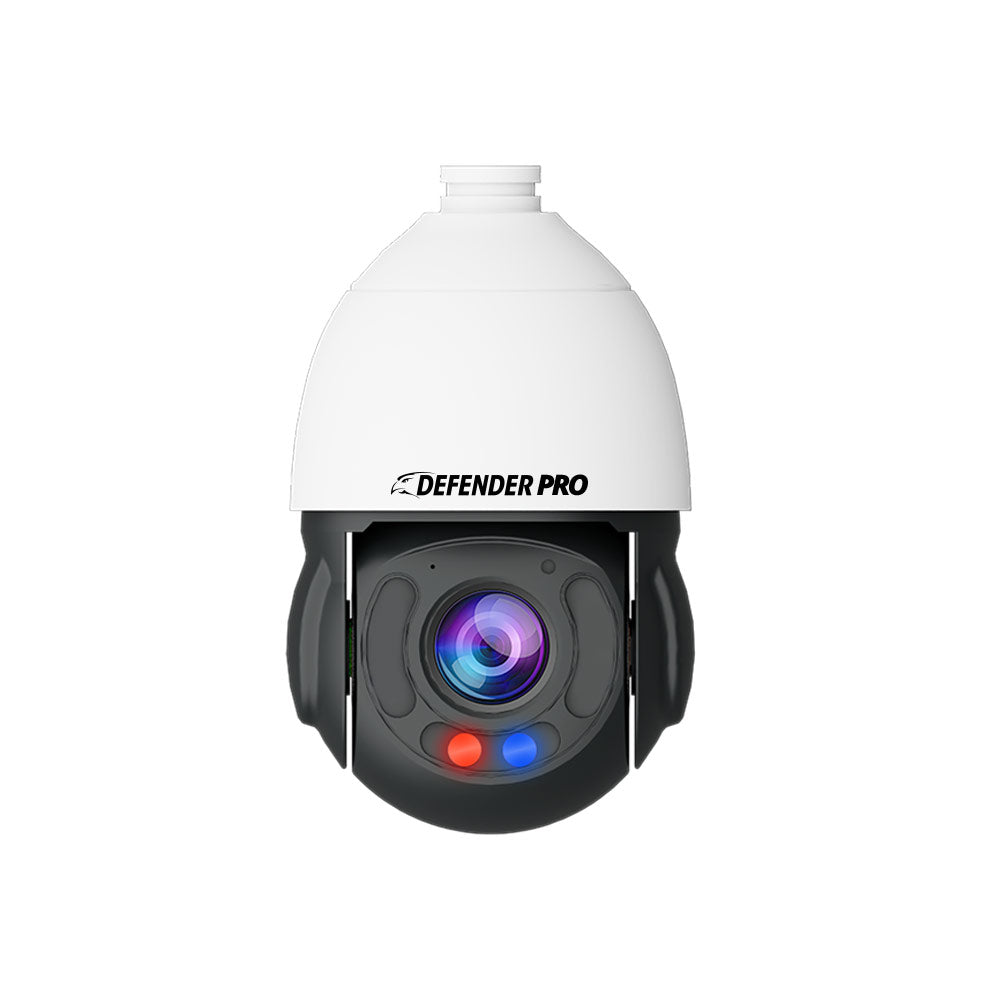

Defender Pro 8MP AI POWERED High-Speed 20x Zoom PTZ Dome Camera

CAMERA

Image Sensor: 1/2.7″ Progressive Scan CMOS

Max. Resolution: 3840 × 2160 (8MP)

Min. Illumination: B/W: 0.0006 Lux@(F1.6, AGC ON)
0 Lux with IR

Shutter Time: 1/3s to 1/100,000s

Day/Night: IR-cut filter with auto switch (ICR)

Wide Dynamic Range: 120dB

Angle Adjustment: Pan: 0°to 360°, tilt: -15°~+95°, rotate: 0°to 360°

LENS 

FOV: D：61.6° to 3.9°  H：53.9° to 3.4° V：31° to 1.9°

Aperture Ratio: F1.6

Iris Control: D-Iris

Focal Length: 5.1 ~ 102 mm,20X

ILLUMINATOR

LED: 1 pcs Red + 1 pcs Blue

Illuminator Number: IR(6)

Illumination Distance: IR up to 150m

IR Wavelength: 850nm

Smart Supplement Light: Yes

Video

Video Compression: H.265+/H.265/H.264+/H.264

Main Stream: 3840 × 2160@ (1–25/30 fps)

Sub Stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)

Third Stream: 1920 x 1080@(1-25/30 fps)

Video Bit Rate: 256 kbps-8192kbps


Backlight Compensation: BLC, HLC, WDR

White Balance: Auto; Manual; Tungsten lamp; Daylight; Sunny; Overcast ; Shadow

Digital Noise Reduction: 2D NR, 3D NR

Video Rotation: 0°/90°/180°/270°

Privacy Masking: 4 areas

OSD: Yes

S/N Ratio: > 56 dB

Defog: Digital Defog

Image stabilization: EIS

Region of Interest (ROI): 8 areas

AUDIO

Audio Compression: G.711a; G.711u; G.726; PCM

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.726)/16Kbps(PCM)

Network

Network Protocol: IPv4; IPv6; HTTP; DHCP;FTP;PPPOE;RTSP; ONVIF;DDNS;SNMP;UPNP;SSDP;Bonjour;802.1X,；QoS；

API: ONVIF (Profile S/Profile G/Profile T); SDK;API

User/Host: Up to 10 users, 3 user levels: administrator, operator, and use

Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-LEAP, EAP-MD5), IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, control timeout settings, security audit log, TLS 1.1/1.2/1.3.

Network Storage: FTP; Micro SD card (support max. 512 GB)

Client: iOS; Android

Browser: IE11: 11.0.9600, Chrome57: Blink Firefox: Quantum 90, Edge edge126.0.2592.102, Safari 2023 version and above

PTZ

Pan Range: 360°

Pan Speed: 0.1°/S~300°/S

Tilt Range: -15°~+95°

Tilt Speed: 0.1°/S~100°/S

Number of Presets: 300

Preset Patrol: 8 patrols, up to 32 presets for each patrol

INTELLIGENCE

Smart Intrusion Prevention: SMD, intrusion, tripwire (the two functions support the classification of human, non-motor vehicle and vehicle ),Auto Tracking（human, non-motor vehicle and vehicle ）

Face Capture: Yes

EVENT

Basic Detection: Motion detection; video tampering;  audio detection;

General Function: SD card full; SD card error; Network disconnection; IP conflict; illegal access;

One-key Disarming: Support

INTERFACE

Network: 1 * RJ45 10M/100M Base-TX Ethernet

Audio I/O: 1/1

Alarm I/O: 2/1

Built-in Mic: Support

Built-in Speaker: Support

Video Output: N/A

Reset Button: Support

Edge Storage: Micro SD/SDHC/SDXC slot  Max. 512GB

GENERAL

Linkage Method: Upload to FTP/memory card/trigger capture, send email

Camera Material: Plastic and Metal

Dimensions: 6.69” x 6.82” x 11.37”  (173.2mm × 177mm x 288.7mm )

Weight: 5.192lbs (2360g)

Storage Temperature/Humidity: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Operating Temperature/Humidity: -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Power supply: 12 VDC±25%,PoE (802.3at, class 3)

Power Consumption: MAX: 16W

Power Interface: Ø 5.5 mm coaxial power plug

Surge Protection: 6kv

Ingress Protection: IP66
