All-in-one cable provides power, video & audio. No BNC cables or camera power adapters required!
Sentinel 4K NVR Ultra HD Wired Additional Security Camera
Camera Only, Ethernet Cable not includedCompatibility Note: This camera is ONLY compatible with Defender Sentinel NVR Security System. This camera can not be used with other Defender or third-party models and can not be used as a standalone camera.
Select Your Warranty
View your footage in brilliant detail and incredible clarity. The Sentinel 4K NVR supports 4K Ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Color Night Vision
View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Audio Recording
Sentinel supports crisp sound recording to give your footage the full story. Stream and record high quality, richly detailed audio.
View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Color Night Vision
View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Audio Recording
Sentinel supports crisp sound recording to give your footage the full story. Stream and record high quality, richly detailed audio.
Smart Human Detection
Using an advanced algorithm, Smart Human Detection significantly reduces false alarms that can be triggered by insects, rain, swaying trees, passing vehicles, or animals. Control the motion sensitivity and detection area for even more effective surveillance.

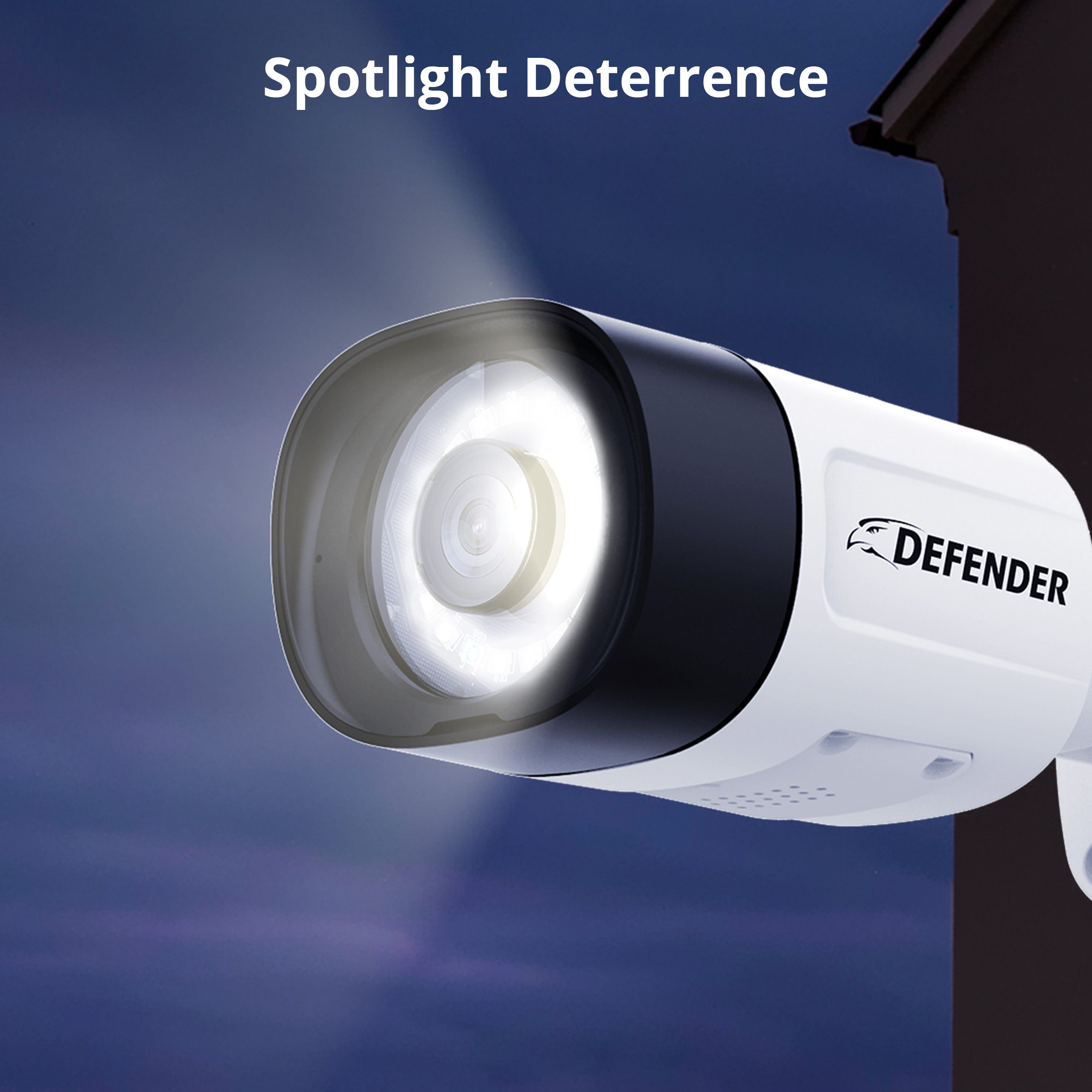

Deterrence Spotlight
Deter intruders and add peace of mind with Sentinel's powerful LED spotlight.
Smart Human Detection
Using an advanced algorithm, Smart Human Detection significantly reduces false alarms that can be triggered by insects, rain, swaying trees, passing vehicles, or animals. Control the motion sensitivity and detection area for even more effective surveillance.
Deterrence Spotlight
Deter intruders and add peace of mind with Sentinel's powerful LED spotlight.
Weather Resistant
Alumunium - IP66
Built for indoor or outdoor use, the camera's durable aluminum housing resists rusting and deterioration.
Weather Resistant Alumunium - IP66
Built for indoor or outdoor use, the camera's durable aluminum housing resists rusting and deterioration.
Technical Specification
Model Number
NS8MPCB1

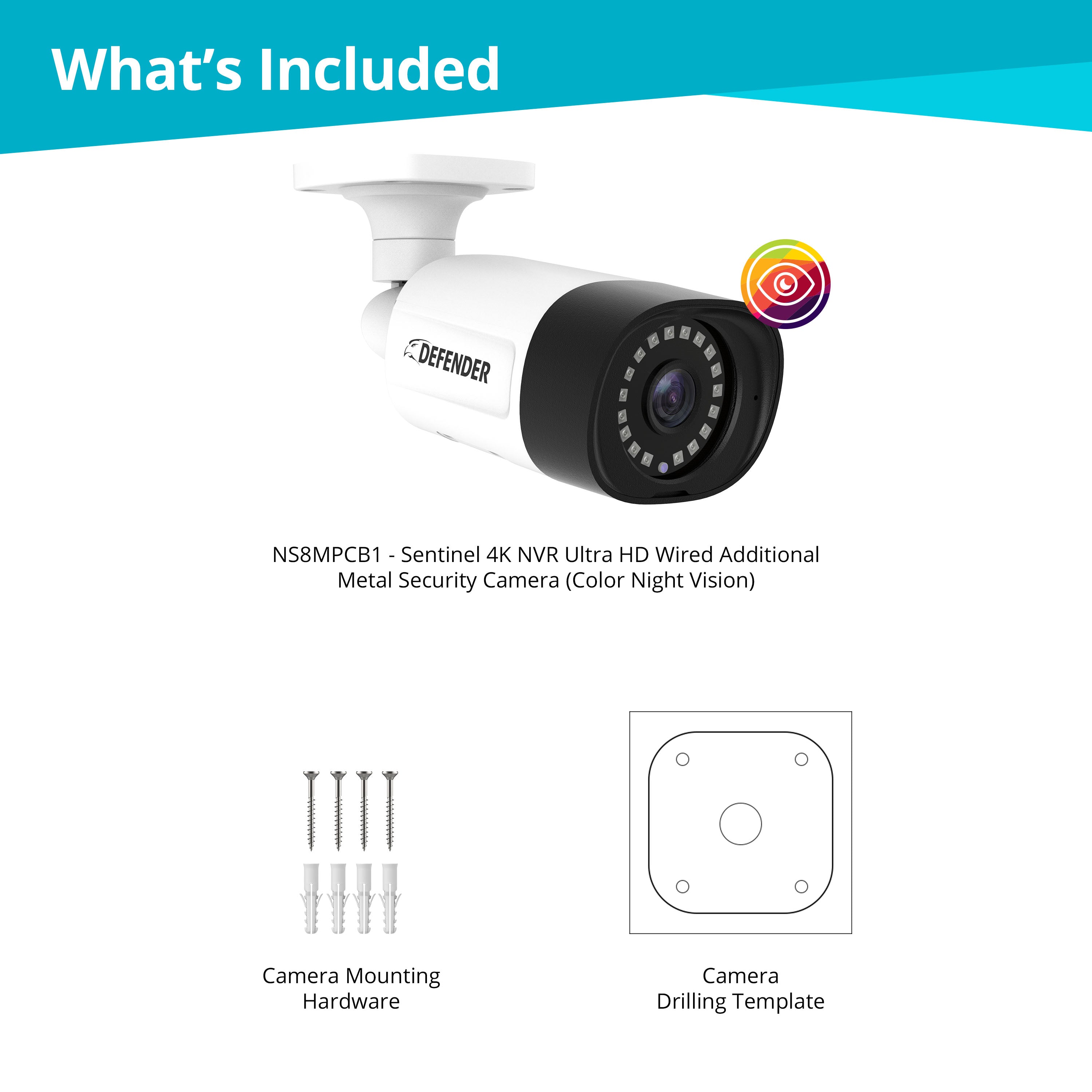

What's Included
1 x Sentinel 4K NVR Ultra HD Wired Additional Security Camera
1 x Camera Mounting Hardware
1 x Drill Template
Camera
Image Sensor: 1/3" CMOS Sensor
Signal System: PAL/NTSC
Min. illumination: Min. illumination Color:0.01Lux@ (F1.2,AGC ON) ;, B/W:0Lux@(IR LED ON)
S/N Ratio: More than 50dB
IR Range: Up to 30 m
# of IR LEDs: 18pcs
IR Distance: 18 infrared lights and 18 white lights; infrared 20 meters, white light 10 meters (varies by environment)
Lens
Lens Type: Fixed focus
Iris: Fixed Iris
Focal Length: 4 mm
Aperture: F2.0
Field of View: 75°
Video
Resolution: Main stream:3840*2160,Sub stream:800*448, 8MP
Frame Rate: Frame Rate Max 15fps,frame rate self-adaption
Video Output: Support AHD/TVI/CVI/CVBS Output
Day/Night: AUTO (ICR infrared filter type) / COLOR / B&W / Ext
OSD Menu: Support
Dynamic Range: Digital WDR
Gain Control: Auto
Noise Reduction: 3D DNR (AUTO/MANUAL 0-20)
White Balance: Auto
BLC: Support
General
Image Settings: Saturation, brightness, contrast, and sharpness can be adjusted by NVR or client
Backlight compensation: Yes
Image reversal: Support horizontal and vertical reversal
Privacy Masking: Yes
Intelligent Alarm: Humanoid detection alarm; motion detection alarm
Alarm Notification: Alarm notification push
Supporting agreement: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, NTP, IGMP
Interface Protocol: N1/RTSP/ONVIF agreement
Operating Temperature and Humidity: -20℃~50℃,Humidity less than 95% (non-condensing)
Power Adapter: DC 12V/1A (Note: DC12V Φ5.5mm round head power supply must be prepared separately)
Protecition Level: IP66, TVS 4000V lightning protection, surge protection, and surge protection
