Connect up to 4 cameras to this 1TB NVR, compatible with Defender Sentinel 4K Security System. Please Note: We only guarantee full functionality when connected to the Defender 4K Security Cameras

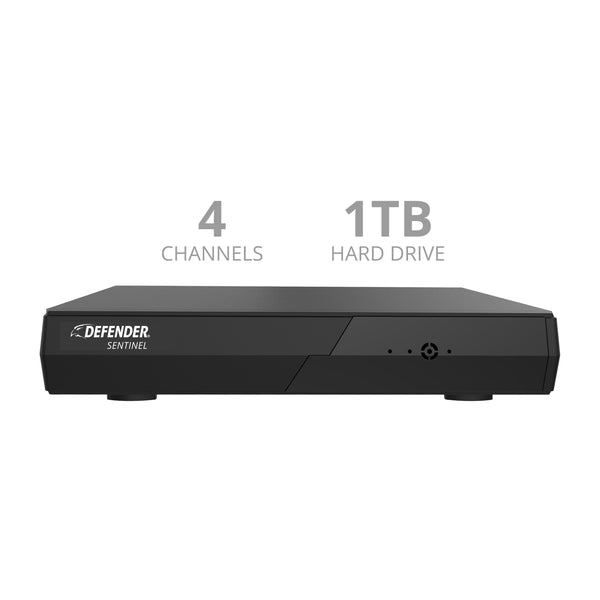

Sentinel 4K 4 Channel NVR with 1TB HDD
Sentinel 4K 4 Channel NVR with 1TB HDD
No Monthly Subscription or Hidden Costs
With a tremendous 1TB of free storage offering up to 408 hours of recording, you'll never burdened by contracts of monthly fees.
No Monthly Subscription or Hidden Costs
With a tremendous 1TB of free storage offering up to 408 hours of recording, you'll never burdened by contracts of monthly fees.
All-in-one cable provides power, video & audio. No BNC cables or camera power adapters required!
View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Smart Human Detection
Using an advanced algorithm, Smart Human Detection significantly reduces false alarms that can be triggered by insects, rain, swaying trees, passing vehicles, or animals. Control the motion sensitivity and detection area for even more effective surveillance.
Audio Recording
Sentinel supports crisp sound recording to give your footage the full story. Stream and record high quality, richly detailed audio.
View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Audio Recording
Sentinel supports crisp sound recording to give your footage the full story. Stream and record high quality, richly detailed audio.
Smart Human Detection
Using an advanced algorithm, Smart Human Detection significantly reduces false alarms that can be triggered by insects, rain, swaying trees, passing vehicles, or animals. Control the motion sensitivity and detection area for even more effective surveillance.
Technical Specification
Model Number
NS1T4NVR
What's Included
1 x Sentinel 4 Channel NVR with 1 TB HDD
1 x NVR USB Mouse
1 x NVR Power Supply
Quick Start Guide
Warranty Registrations Insert
Video and Audio
Video Input: 4CH 720P/960P/1080P/3MP/4MP/5MP/8MP
Network Video Accesss Bandwidth: 20Mbps
HDMI output: 1 CH, HDMI interface; resolution: 4K / 30Hz;
VGA output: 1 CH, VGA interface; resolution: 1920x1080P / 60Hz
Audio In/Out: One 3.5mm headphone jack (optional), supports HDMI audio output
Synchronous Playback: 4/1
Digital Zoom X: 8X
Video and Audio Codec Specs
Video compression standard: Standard H.265, H.264
Playback Performance: 4-channel 8MP recording, 1-channel 8MP playback; 4-channel 5MP recording, 2-channel 5MP playback; 4-channel 3MP recording, 4-channel 3MP playback; 4-channel 1080P recording and 4-channel 1080P playback
Video Encoding Resolution: 720P, 960P, 1080P, 3MP, 4MP, 5MP, 8MP video encoding
Stream Type: Audio and video streaming/video streaming, support variable bit stream (VBR) / fixed bit stream (CBR)
Audio Compression Standard: G.711
Video Management
Video Mode: Manual recording, timing recording, motion detection recording, alarm recording
Playback Mode: Regular Playback
Backup Mode: USB and Network Backup
Hard Disk Drive
Storage Type: Support 1 SATA interface
Storage: Up to 6TB
Power Over Ethernet
Interface: 8 RJ45 10M / 100M adaptive Ethernet ports
Standard: IEEE802.3af
Output Power: ≤13W
External Interface
Network Interface: 1 RJ45 100M adaptive Ethernet port
USB Interface: 2 USB2.0 ports
Network Management
Internet Protocol: NTP (network school time), SMTP (mail service), PPPoE (dial-up Internet access), DHCP (automatically obtain an IP address)
General
Power Input: DC +48V
Power Consumption (Excluding Hard Drive): ≤15W
Operating Temperature: -10℃ - +55℃
Working Humidity: 10% - 90%
Size: 25.8 x 21 x 4.2cm
Weight (Without Hard Drive): ≤1Kg
