Sentinel 4K 8 Channel NVR with 1TB HDD

$486
Sentinel 4K 8 Channel NVR with 1TB HDD

Sentinel 4K 8 Channel NVR with 1TB HDD

$486
description

Connect up to 8 cameras to this 1TB NVR, compatible with Defender Sentinel 4K Security System. Please Note: Full functionality can only be guaranteed when connected to the Defender 4K security cameras.

No Monthly Subscription or Hidden Costs

With a tremendous 1TB of free storage offering up to 408 hours of recording, you'll never burdened by contracts of monthly fees.

No Monthly Subscription or Hidden Costs

With a tremendous 1TB of free storage offering up to 408 hours of recording, you'll never burdened by contracts of monthly fees.

All-in-one cable provides power, video & audio. No BNC cables or camera power adapters required!

View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.

Smart Human Detection

Using an advanced algorithm, Smart Human Detection significantly reduces false alarms that can be triggered by insects, rain, swaying trees, passing vehicles, or animals. Control the motion sensitivity and detection area for even more effective surveillance.

Audio Recording

Sentinel supports crisp sound recording to give your footage the full story. Stream and record high quality, richly detailed audio.

View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.

Audio Recording

Sentinel supports crisp sound recording to give your footage the full story. Stream and record high quality, richly detailed audio.

Smart Human Detection

Using an advanced algorithm, Smart Human Detection significantly reduces false alarms that can be triggered by insects, rain, swaying trees, passing vehicles, or animals. Control the motion sensitivity and detection area for even more effective surveillance.

Technical Specification


Model Number

NS1T8NVR

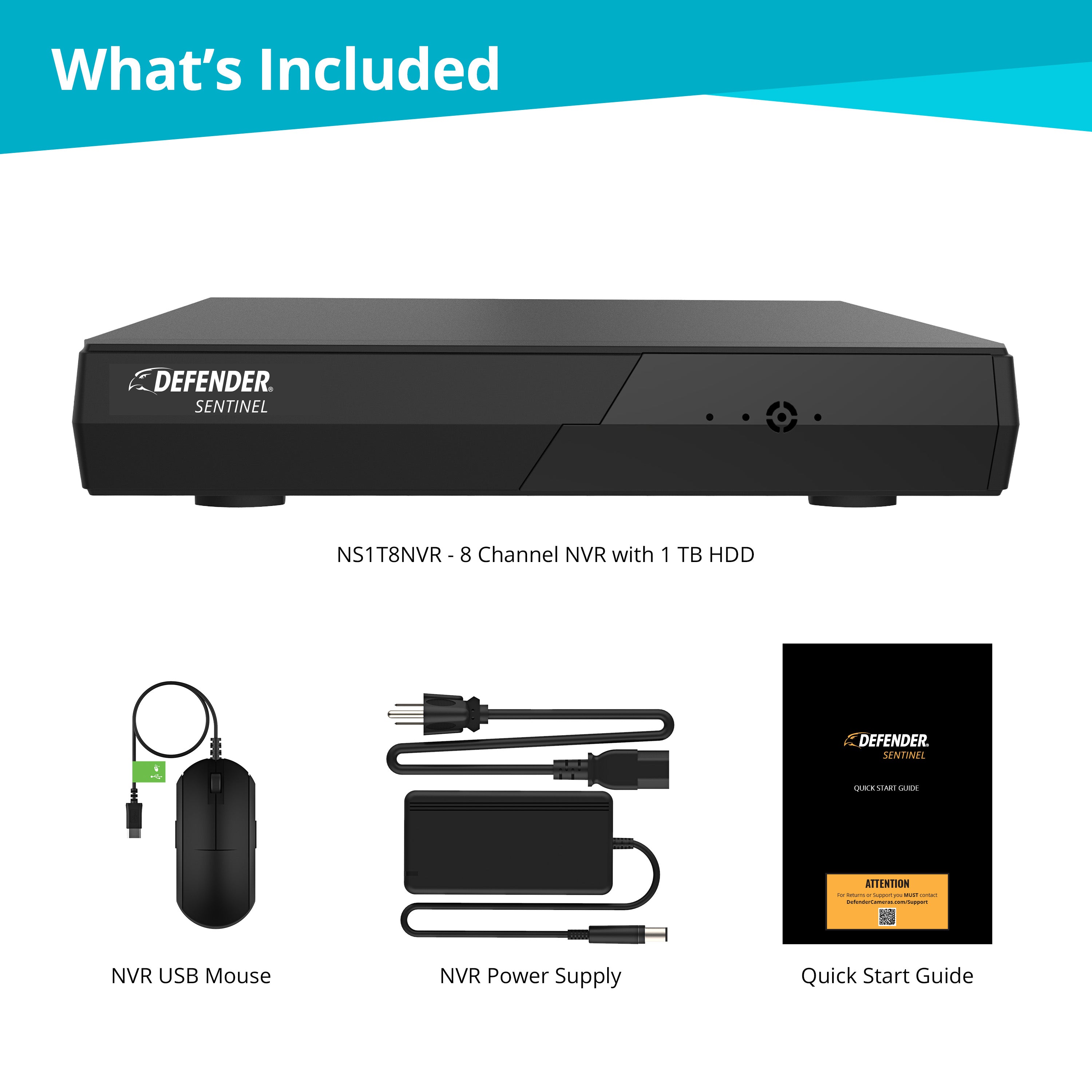

What's Included

1 x Sentinel 8 Channel NVR with 1 TB HDD

1 x NVR USB Mouse

1 x NVR Power Supply

Quick Start Guide

Warranty Registrations Insert


Video and Audio

Video Input: 4CH 720P/960P/1080P/3MP/4MP/5MP/8MP

Network Video Accesss Bandwidth: 20Mbps

HDMI Output: 1 CH, HDMI interface; resolution: 4K / 30Hz;

VGA Output: 1 CH, VGA interface; resolution: 1920x1080P / 60Hz

Audio In/Out: One 3.5mm headphone jack (optional), supports HDMI audio output

Synchronous Playback: 4/1

Digital Zoom: 8X


Video and Audio Codec Specs

Video compression standard: Standard H.265, H.264

Playback Performance: 4-channel 8MP recording, 1-channel 8MP playback; 4-channel 5MP recording, 2-channel 5MP playback; 4-channel 3MP recording, 4-channel 3MP playback; 4-channel 1080P recording and 4-channel 1080P playback

Video Encoding Resolution: 720P, 960P, 1080P, 3MP, 4MP, 5MP, 8MP video encoding

Stream Type: Audio and video streaming/video streaming, support variable bit stream (VBR) / fixed bit stream (CBR)

Audio Compression Standard: G.711


Video Management

Video Mode: Manual recording, timing recording, motion detection recording, alarm recording

Playback Mode: Regular Playback

Backup Mode: USB and Network Backup


Hard Disk Drive

Storage Type: Support 1 SATA interface

Storage: Up to 6TB


Power Over Ethernet

Interface: 8 RJ45 10M / 100M adaptive Ethernet ports

Standard: IEEE802.3af

Output Power: ≤13W


External Interface

Network Interface: 1 RJ45 100M adaptive Ethernet port

USB Interface: 2 USB2.0 ports


Network Management

Internet Protocol: NTP (network school time), SMTP (mail service), PPPoE (dial-up Internet access), DHCP (automatically obtain an IP address)


General

Power Input: DC +48V

Power Consumption (Excluding Hard Drive): ≤15W

Operating Temperature: -10℃ - +55℃

Working Humidity: 10% - 90%

Size: 25.8 x 21 x 4.2cm

Weight (Without Hard Drive): ≤1Kg
