Compatibility: This camera is ONLY compatible with Defender Vision Ultra HD Wired security system. This camera can not be used with other Defender or third-party models and can not be used as a standalone camera.

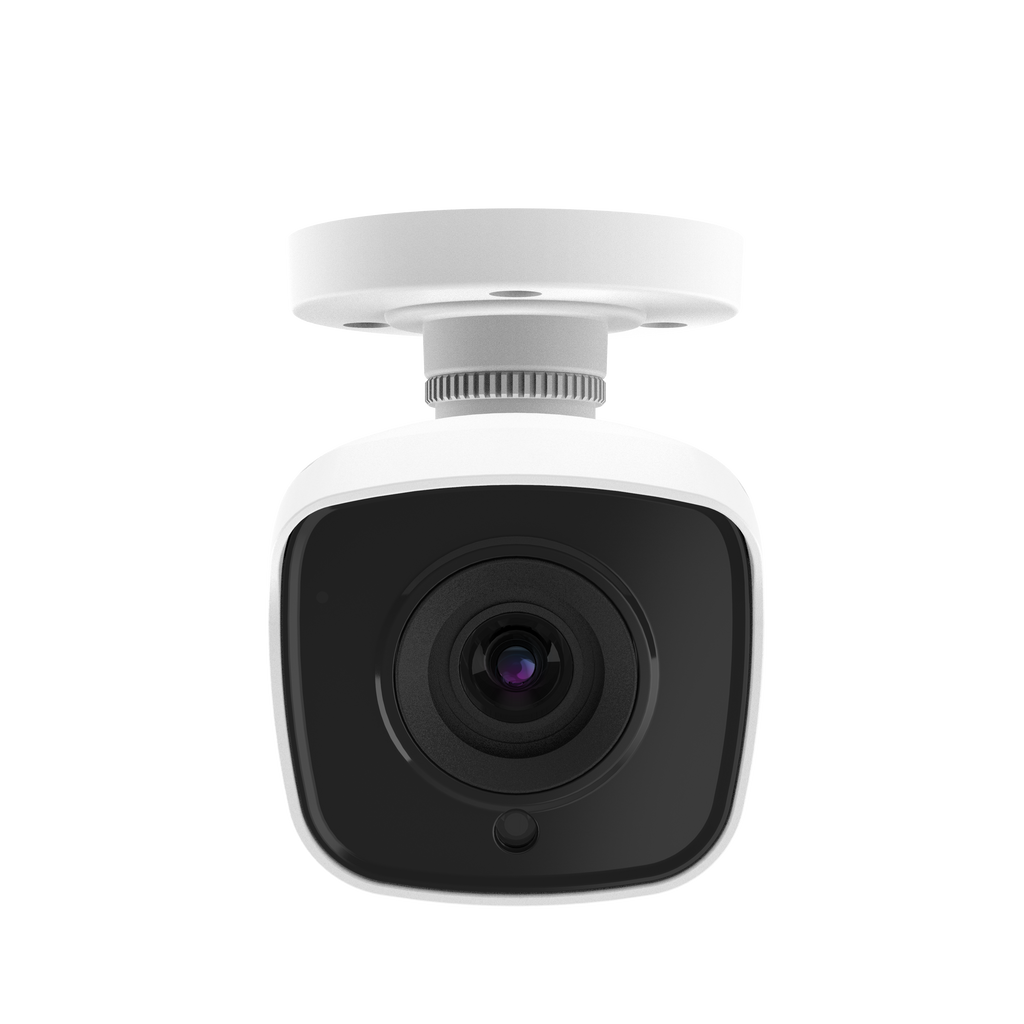

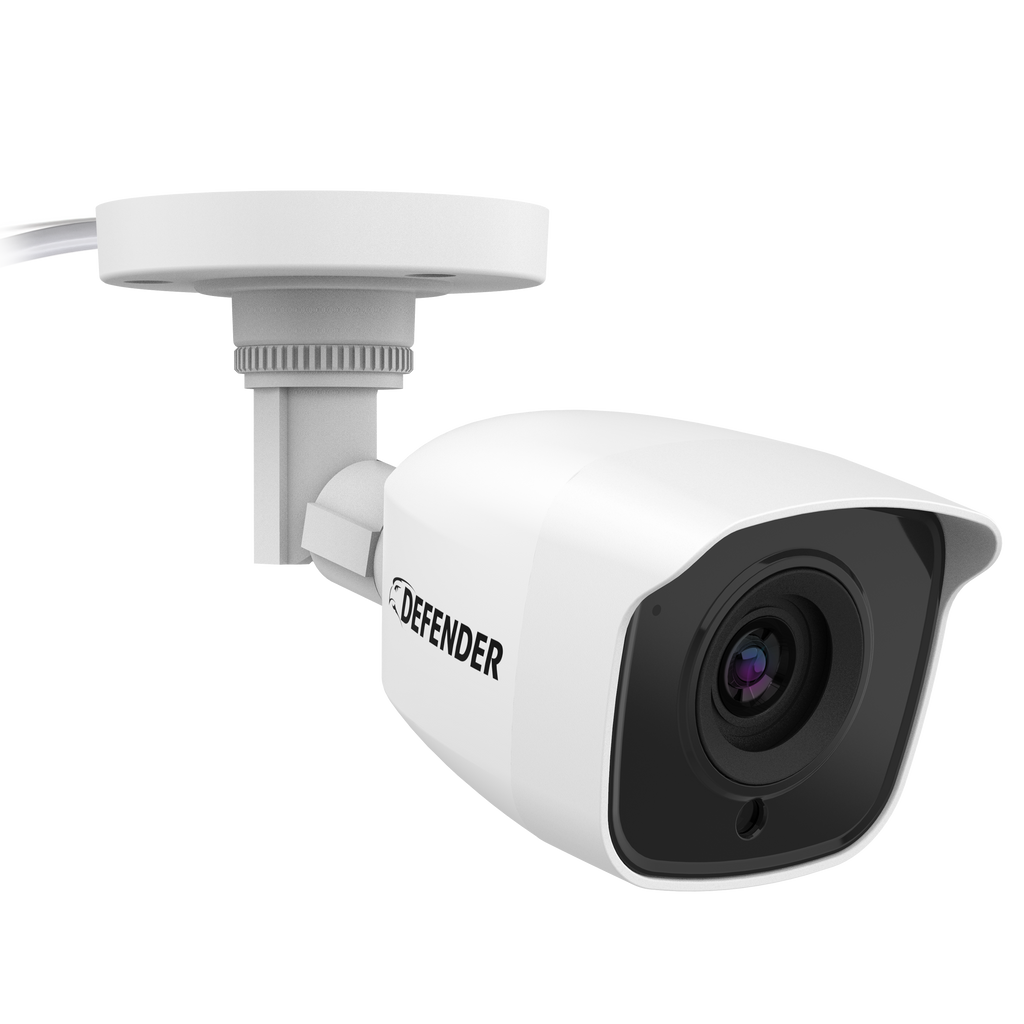

4K Vision Ultra HD Wired Additional Security Camera
Camera Only, BNC Cable not includedPlease note:This camera is only compatible with the Defender 4K Vision Security Systems.
Select Your Warranty
Technical Specification
Model Number
DV8MPCB1

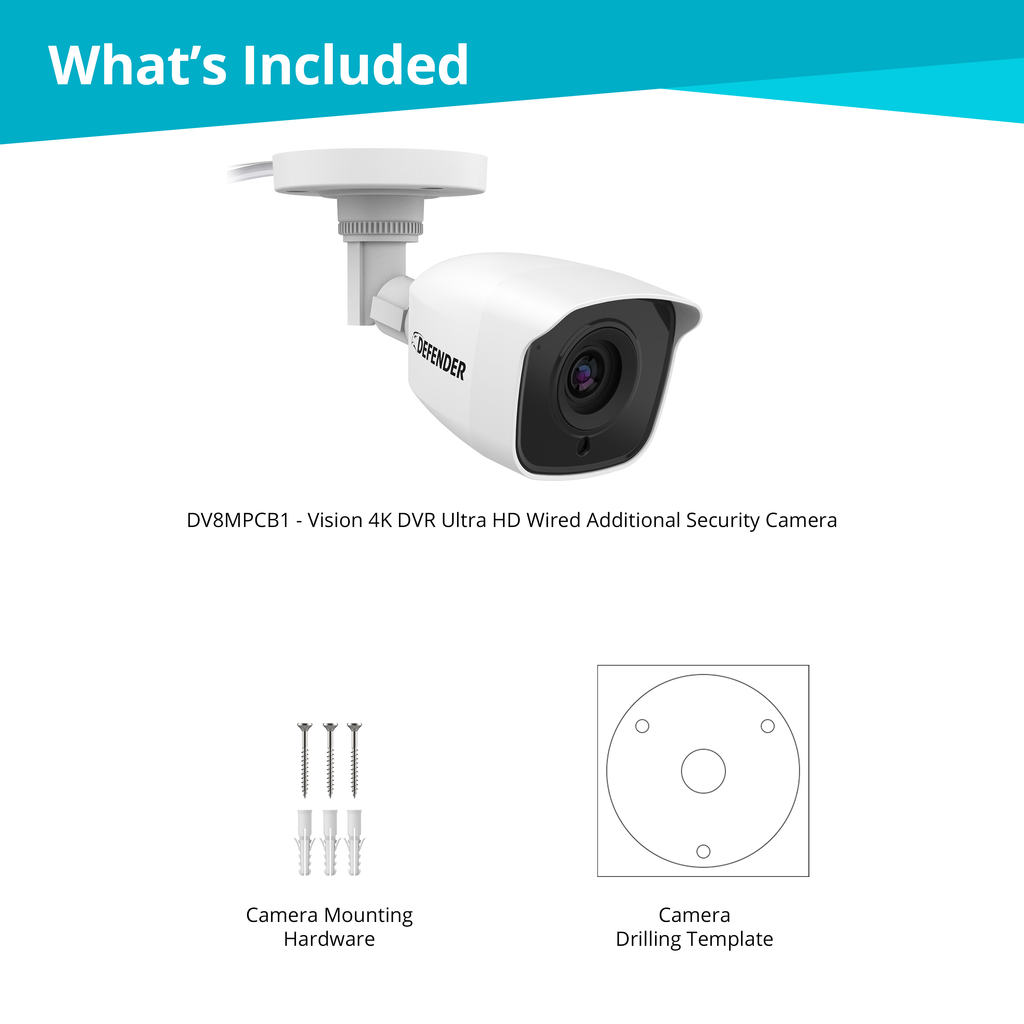

What's Included
1 x 8MP analog camera
1 x Camera Power Supply
1 x Camera Mounting Hardware Pack
1 x Drilling Template
General
Resolution: 8MP (3840X 2160)
Frame Rate: 15fps
Video: AHD/TVI//CVI@ 15FPS, CVBS: PAL/NTSC
Day/Night: Auto / Color / B/W /Ext
Wide Dynamic Range: DWDR, OFF/ON
Gain Control: Auto
Noise Reduction: 2D DNR, AUTO/MANUAL(0-10)
White Balance: Auto
BLC: Support
Image Sensor: 1/2.7" Progressive Scan CMOS
Signal System: PAL/NTSC
Electronic Shutter: Auto
Min. Illumination: Color: 0.02 Lux @ (F1.3, AGC ON); B/W: 0 Lux@ (IR LED ON)
SN Ratio: More than 50 dB
IR On/Off Control: Auto/Manual
IR LEDs: 18 Pcs
Pan/Tilt/Rotation Range: Pan: 0°~360°; Tilt: 0°~90° ; Rotation : 0°~360°
Lens Type: Fixed
Iris: Fixed Iris
Focal Length: 3.6 mm
F-Number: F2.2
Angle of View: H: 85.8°, V:43.7°
Protection level: IP66
