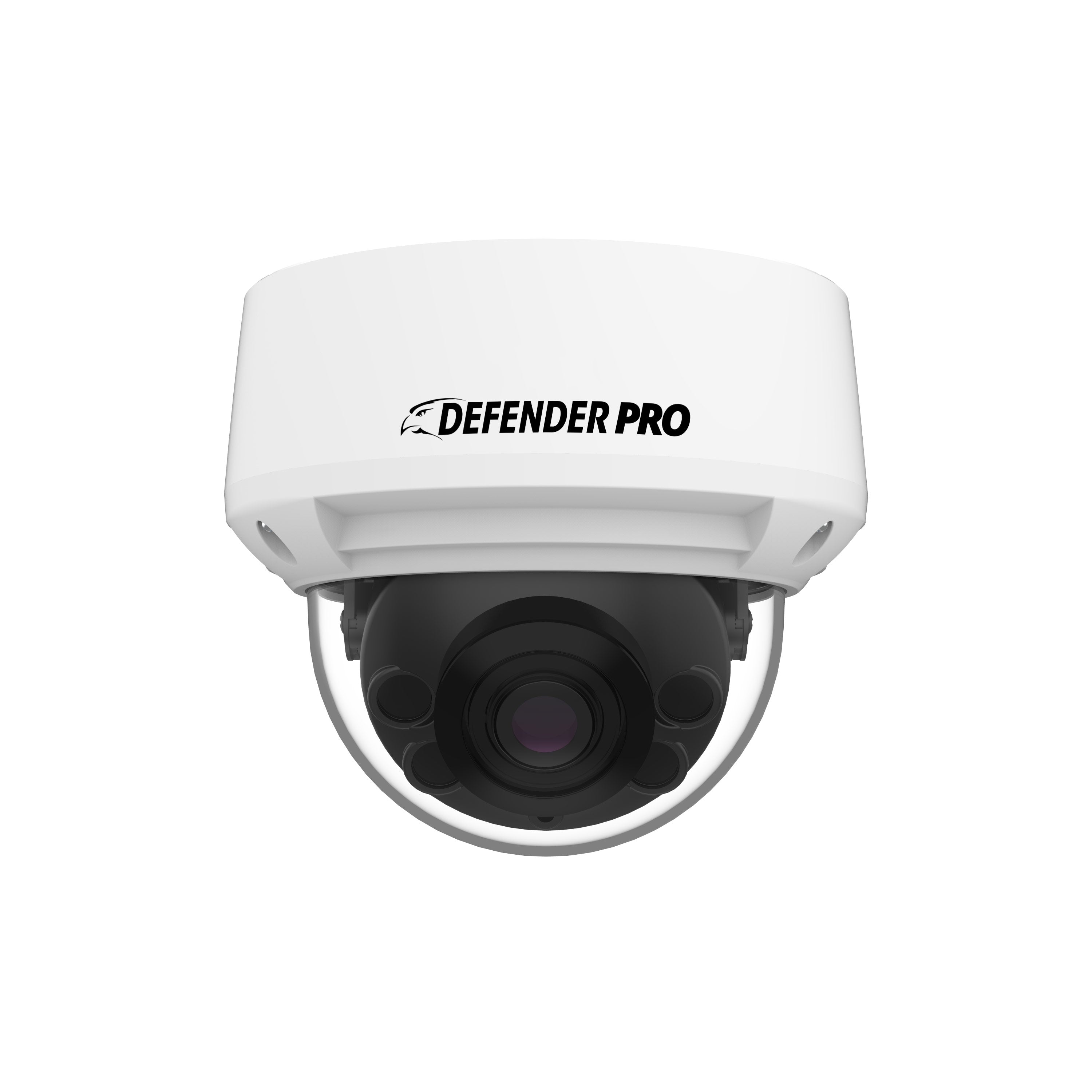

Defender Pro 5MP AI POWERED 5X Optical Zoom PoE IPK10 Facial Recognition Dome Camera

CAMERA

Image Sensor: 1/2.8” Progressive Scan CMOS

Max. Resolution: 5MP, 2592H) × 1944(V)

Electronic Shutter: Auto/Manual, 1/5 to 1/20,000s

Min. illumination: Color: 0.005 Lux @ (F1.6, AGC ON) , B/W: 0 Lux with IR

Day & Night: Auto (ICR)

Wide Dynamic Range: True WDR

Angle Adjustment: Pan: 0˚ to 355˚, Tilt: 0˚ to 75˚, Rotation: 0˚ to 355˚

LENS

Lens Type: Varifocal lens, Motorized focal

Iris: Fixed Iris

Focal Length: 2.7 to 13.5 mm

Max. Aperture: F1.6

Field of View (FOV): H: 98.3° to 27.5°, V: 71.3° to 20.3°

DORI DISTANCE

Detect: 63 to 217 m (206.7 to 711.9 ft)

Observe: 25.2 to 86.8 m (82.7 to 284.8 ft)

Recognize: 12.6 to 43.4 m (41.3 to 142.4 ft)

Identify: 6.3 to 21.7 m (20.7 to 71.2 ft)

DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.

ILLUMINATOR

Illuminator Type: IR

Illumination Distance: Up to 40 m (131.2 ft)

Illumination On/Off Control: Auto/Manual

IR wavelength: 850 nm

INTELLIGENT ANALYTICS

Multi-Object Detection: Supports face, human, vehicle detection and capture.
Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic.

Intelligent Analysis: Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way detection, Illegal parking, and Smart motion detection
Support alarm triggering by specified target types (human and vehicle)

People Counting: Support

AUDIO & VIDEO

Streaming Capability: 3 Streams

Stream/Frame Rate: Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps
Stream2: D1, VGA, CIF @25/30fps
Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control: CBR/VBR

Bit Rate: Stream1: 200 Kbps to 12 Mbps
Stream2: 100 Kbps to 6 Mbps
Stream3: 100 Kbps to 3 Mbps

Smart Encoder: Support

Region of Interest (ROI): Off/On (8 Zone, Rectangle)

Audio Compression: G.711 A-law, G.711 μ-law, RAM PCM

Audio Bit Rate: 64 Kbps (G.711), 128 Kbps (RAW_PCM)


Image Adjustment: Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode: Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode: Auto, Manual, Shutter priority

White Balance: Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting: Auto, Day, Night, Timer

Noise Reduction: 2D/3D DNR

Image Enhancement: HLC, BLC, Defog, WDR

Privacy Masking: 4 areas

EVENT

Alarm Triggers: IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions: Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output

NETWORK

Protocols: IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability: ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams: 10 channels

User/Host Level: 2+ users, 3 levels: Administrator, Operator, Media user

Security: IP address filter, HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer: <IE11, Chrome, Firefox, Microsoft Edge

INTERFACE

Network Interface: 1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface: 1ch Input, 1ch Output

Alarm Interface: 1ch Input, 1ch Output

SD Card Slot: Built-in, up to 1 TB

Reset Button: Support

GENERAL

Language: English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian,  French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply: 12 VDC (-10% to +25%)/PoE (802.3af)

Power Consumption: Max 6.5 W

Operating Temperature: -40°C to 60°C (-40°F to 140°F )

Operating Humidity: Less than 90% RH

Ingress Protection: IP66, IK10

Certifications: CE-EMC
- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC 47 CFR Part 15 Subpart B

Material: Aluminum alloy body, bubble: plastic

Dimensions: φ130 × 113.3 mm (φ5.12 × 4.46 inch)

Net Weight: Approx. 787 g (1.74 lb)
