4K Vision AI Smart Artificial Intelligence DVR Security System With 16 Wired Cameras

Smart Human and Vehicle Artificial Intelligence, Motion Detection, Color Night Vision, Audio Recording, No Monthly Fees, 2TB Built-In HDD, IP66 Weather Rated, 15FPS Live View, and Premium App for Mobile Viewing.

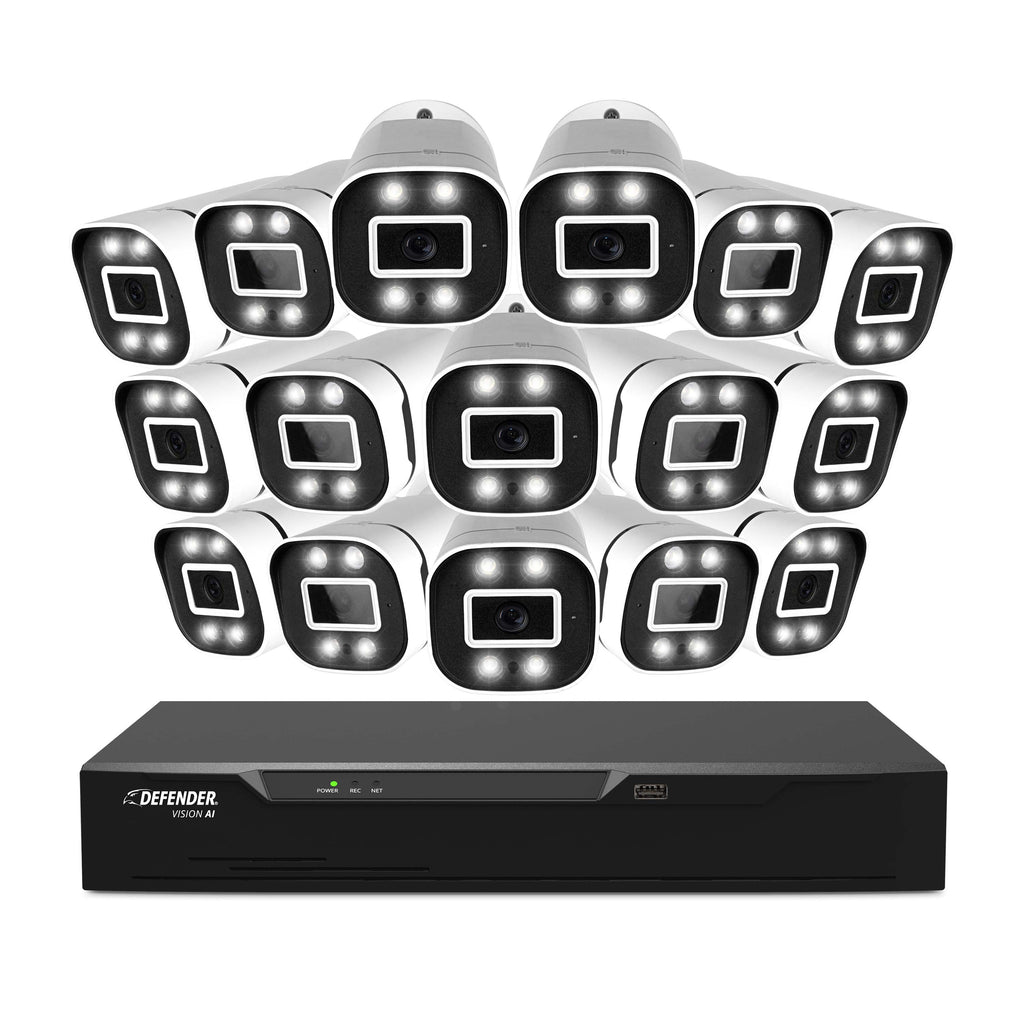

4K Vision AI Smart Artificial Intelligence DVR Security System With 16 Wired Cameras

8 Megapixel UHD Sensor
Smart Human and Vehicle Detection
No Monthly Fees
Vivid Color Night Vision
128-bit Bank-Level Encryption
Remote Mobile Viewing


Real-time Image Processing

Self Learning

Enhanced Accuracy


Definitive Detection

Detailed Notifications

*The graphics shown are simulated for illustrative and creative purposes and does not depict the actual user interface.


ClearVu™ Brilliant 4K doesn’t compromise. At four times the resolution of standard 1080P, footage is breathtaking and maintains true-to-life visual acuity. Deep color and sharp visuals ensure that you are getting an accurate read on fine details like faces or license plates.


Laser sharp image sensors synergize with four high intensity dual infrared LED’s paired with ultra bright white light LED’s to illuminate your full perimeter. View full-color footage even in pitch darkness.

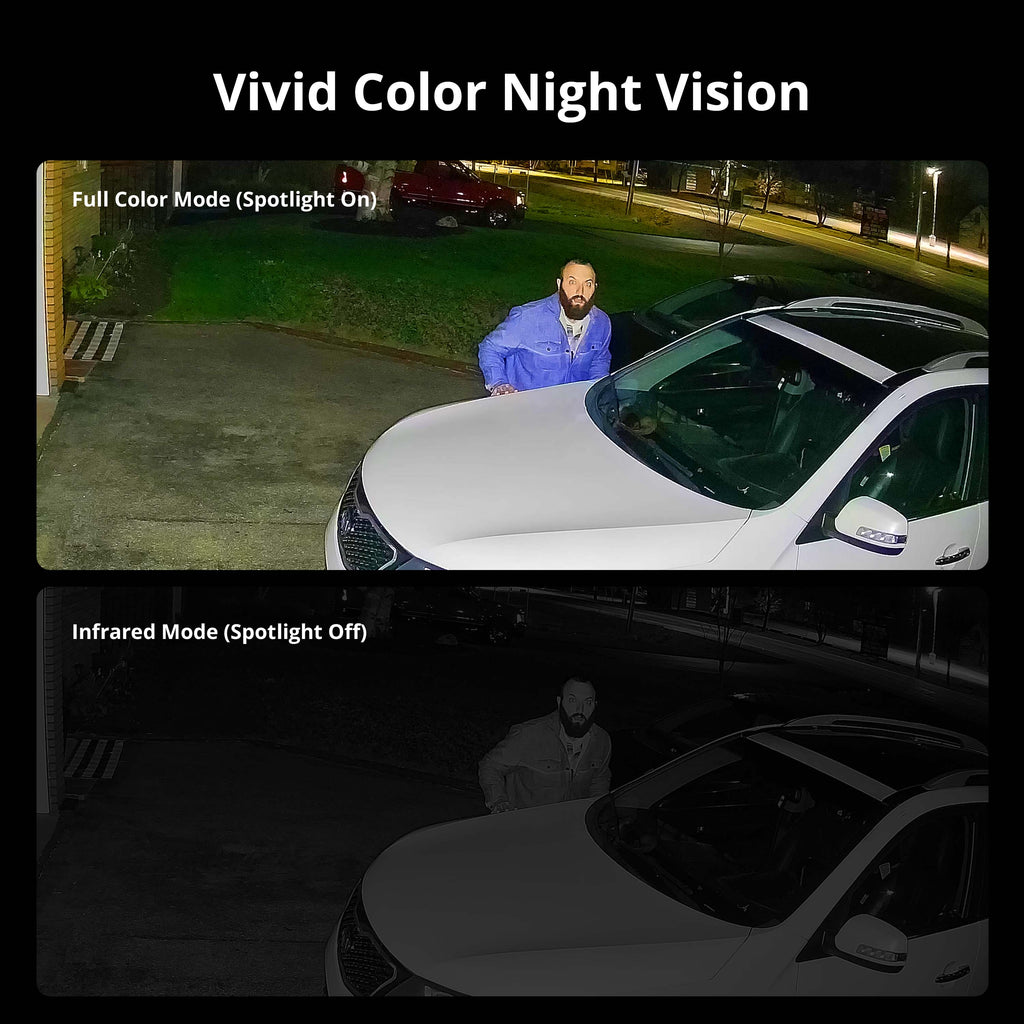

Color Night Vision

Ambient Light

IR Night Vision

Spotlight Deterrence

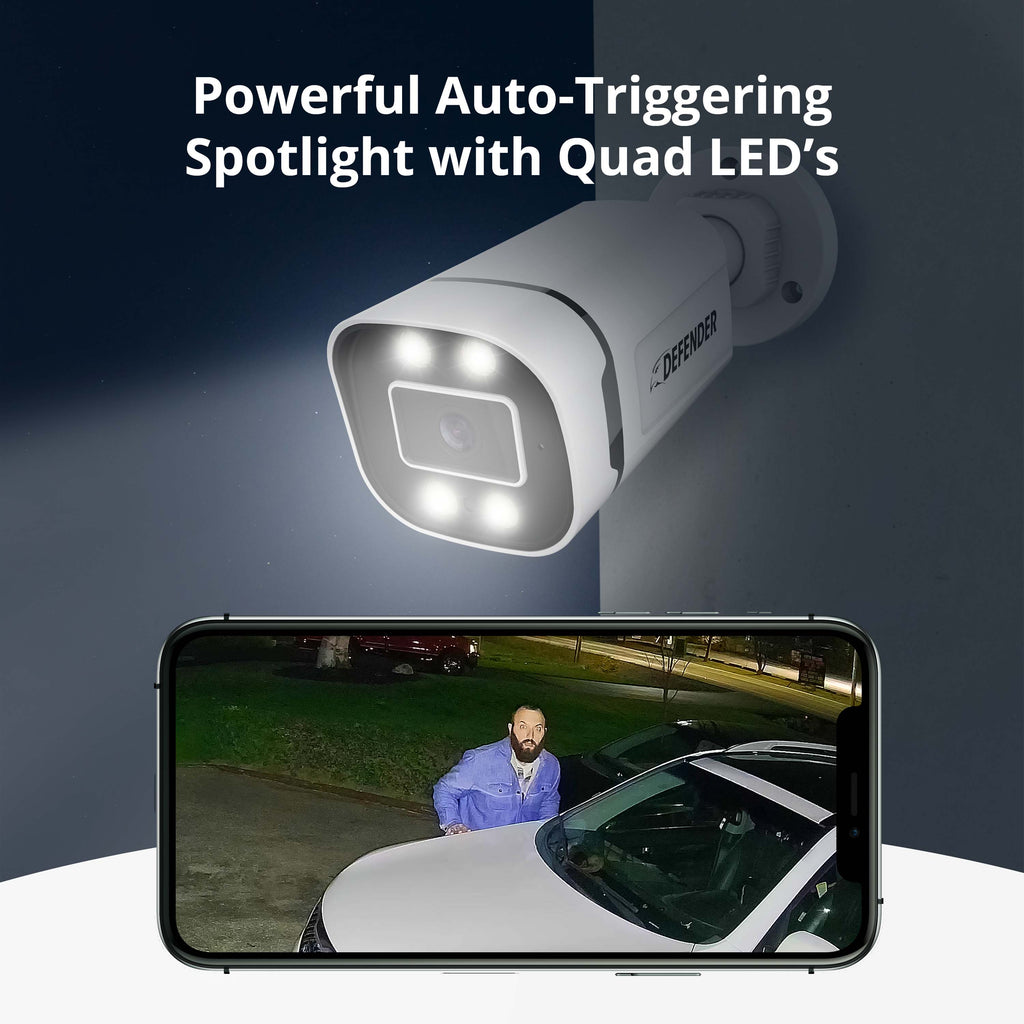

Vision AI uses a powerful auto-triggering spotlight with industry leading quad LED’s made to deter intruders and stop potential trespassers right in their tracks.

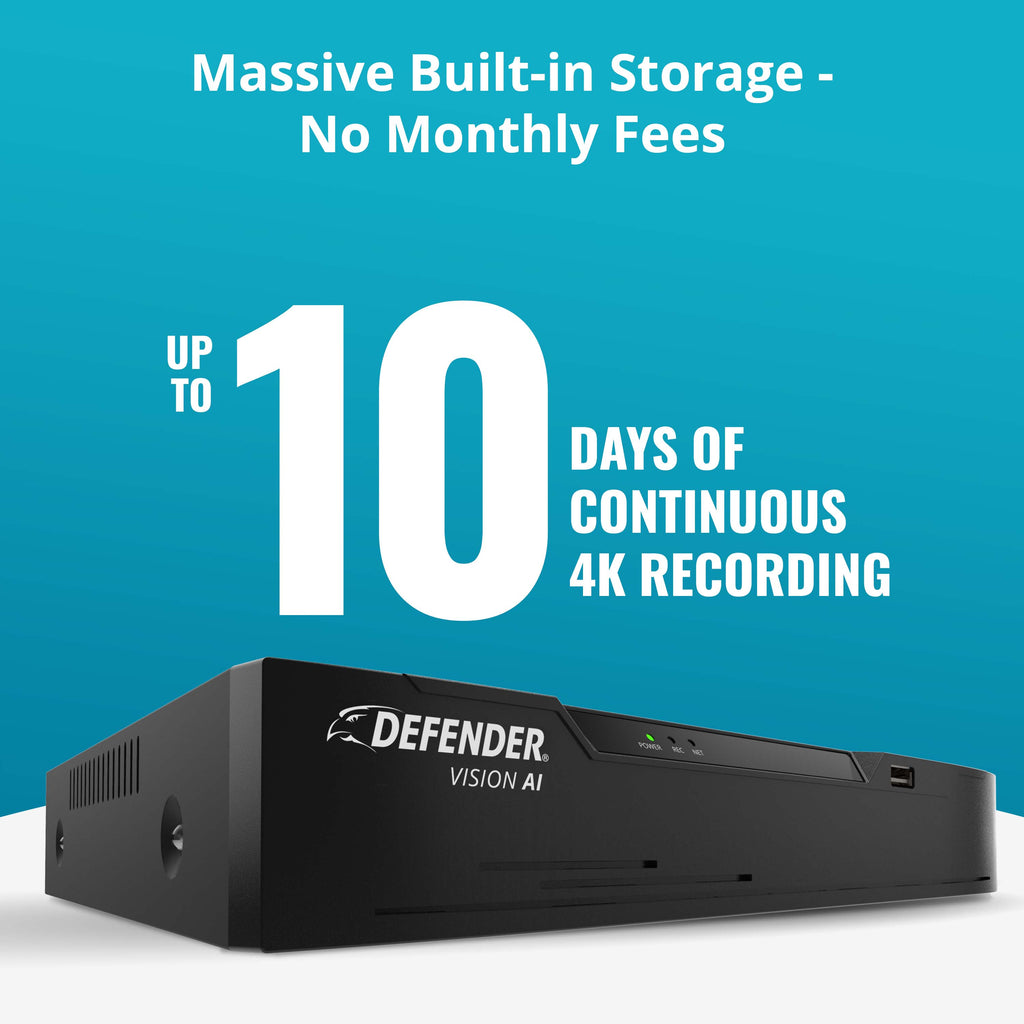

Recording that never stops. NEVER PAY to store your recordings again! With a tremendous 2TB of built-in storage, record up to 10 days of full 4K Ultra HD video footage.

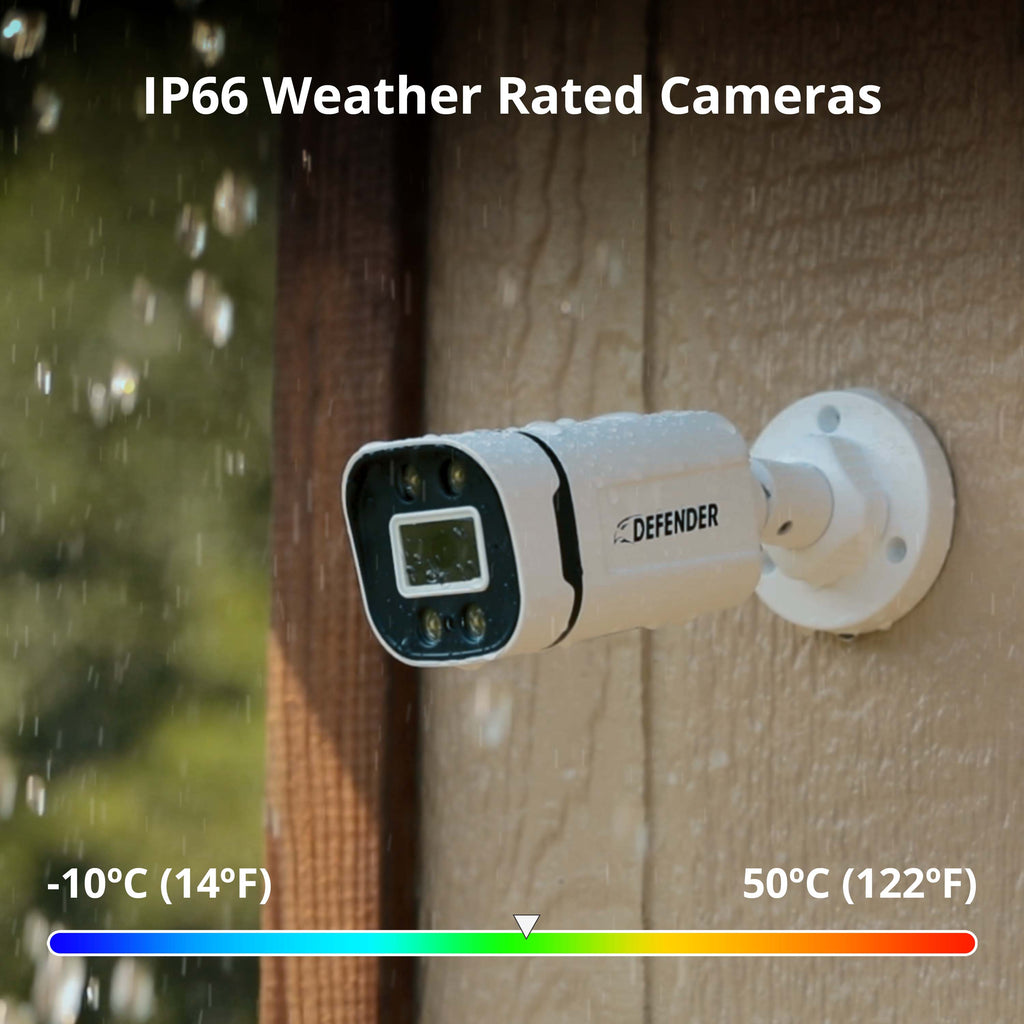

IP66 weather rated with advanced resilience to the elements. Be confident in the durability of your camera system in harsh weather conditions.

Designed For Maximum Protection

Your 4K cameras cover a wide field of view with fixed focus lenses that eliminate blind spots and reduce uncertainty. Connect your 16-wired camera’s and gain confidence in the security of your convenience store, restaurant or warehouse with 24/7 monitoring and alerts.

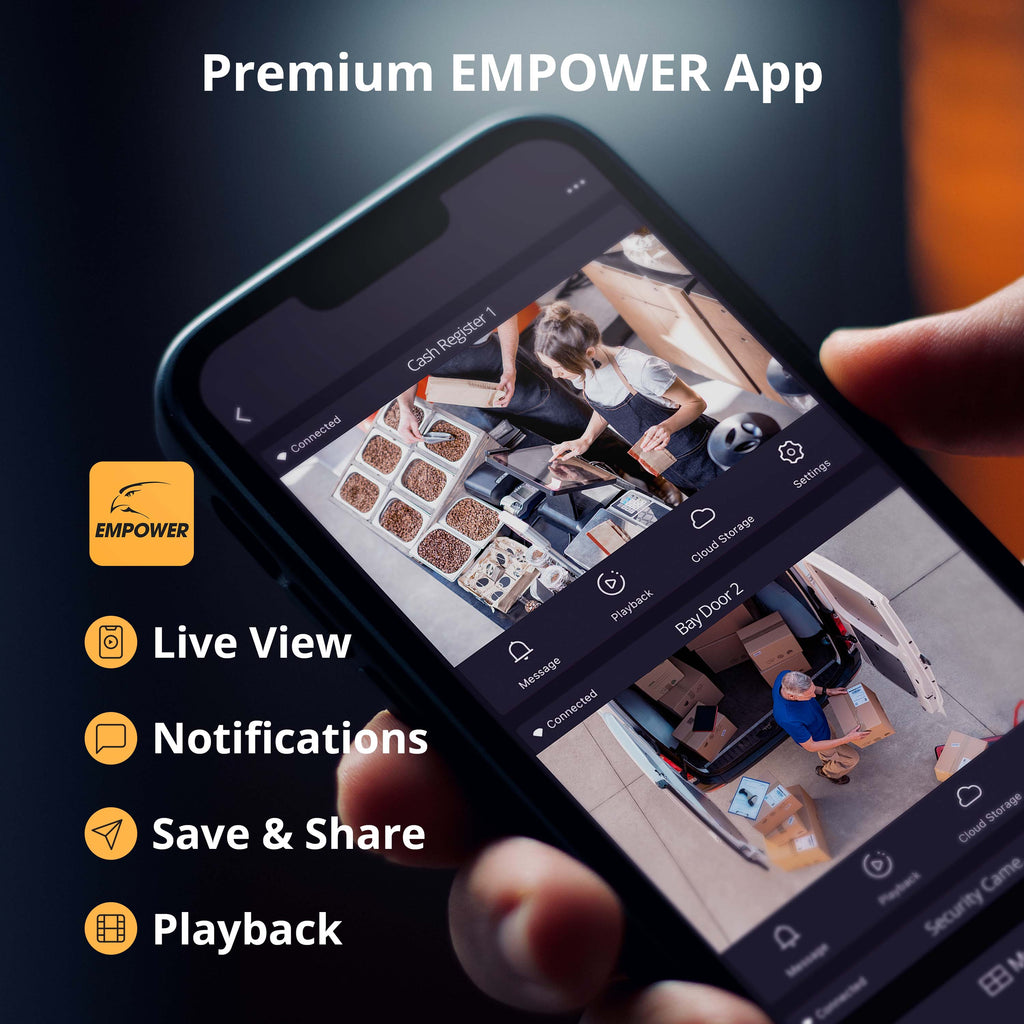

Defender’s top rated, simple and easy Empower App provides security at your fingertips. Receive critical notifications, access your footage anytime, smart search your recordings, and easily share with others.

Save & Share

You can save snapshots and recordings directly your device to easily share footage with friends , family or police.
Live Notifications

Instant Notifications

Instant motion alerts and tailored push notifications as well as smart search by date or event
Live Notifications

See More with Live View

View live or recorded footage on the go directly from the app.
Live Notifications

Uninterrupted Reliable Wired Connection

Stay on guard with a reliable wired connection. Record around-the-clock regardless of internet connectivity. Store footage locally, and ensure maximum privacy.

Model Number
What's Included
  • 1x 16 Channel DVR with Artificial Intelligence and 2TB HDD
  • 16x 4K 8MP Analog Camera
  • 16x Camera Mounting Hardware
  • 16x Drilling Template
  • 4x Camera Power Adapters (12V/2A)
  • 4x 4-Way Power Splitter
  • 16x 60ft BNC Cables
  • 1x 6ft. Ethernet Cable
  • 1x DVR USB Mouse
  • 1x DVR Power Supply
  • 1x Window Warning Sticker (5” x 3”)
  • 1x Quick Start Guide
  • 1x Warranty Registration Insert
  • Lifetime Live Chat Support
Video and Audio
  • Analog Video Input: 16-ch BNC
  • AHD Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
  • TVI Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
  • CVI Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
  • CVBS Input: PAL/NTSC
  • IP Video Input: 16+8, each channel up to 8MP
  • Audio In/Out: 4/1
  • Two-way Talk: N/A
  • HDMI Output: 3840×2160, 1920×1080, 1280×1024,1024×768
  • VGA Output: 1920×1080, 1280×1024,1024×768
  • CVBS Output: NA
  • Synchronous Playback: 24/16/9/4/1
Perimeter Protection
Intrusion Detection: 16-ch, Support accurate detection of human and vehicle
  • Encoding Resolution: 8MP, 5MP, 4MP, 1080P, 720P, 960H, D1, CIF
  • Frame Rate: 8MP@7fps, 4MP@15fps, 1080P@30fps
  • Video Bit Rate: Main Stream: 128Kbps~4096Kbps, Sub stream: 16Kbps~1024Kbps
  • Dual Stream: Supported
  • Recording Time
  • Note: *Once your HDD is full, older footage will be overwritten to ensure you never stop recording.
  • 2TB: Up to 3264 hours
  • Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
  • Protocols: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
  • Remote Users: 4
Hard Disk
    SATA: 2 SATA interfaces
  • Capacity: Up to 8TB capacity for each disk
  • Alarm In/Out: 8/1
  • RS485: Supported
  • USB Interface: 2 ports (USB 2.0 x 2)
  • Power Supply: DC12V/4A
  • Power Consumption: Max 15W (without HDD)
  • Working Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
  • Working Humidity: Less than 90% RH
  • Dimensions (W×D×H): 350 x 305 x 49 mm (13.78 × 12.01 × 1.93 inch)
  • Net Weight: 1.8 kg (3.97 lb)
  • Image Sensor: 1/2.7” Progressive Scan CMOS
  • Signal System: PAL/NTSC
  • Electronic Shutter: Auto
  • Min. illumination: Color:0.02Lux@ (F1.2,AGC ON) ;, B/W:0Lux@(IR LED ON)
  • S/N Ratio: More than 50dB
  • Illumination Distance: IR distance up to 25m, warm light distance up to 20m
  • Illumination On/Off Control: Auto/Manual
  • Illumination Number: 4pcs (IR/Warm light)
  • OSD Joystick: Optional
  • Lens Type: Fixed focus
  • Iris: Fixed Iris
  • Focal Length: 3.6 mm
  • Aperture: F1.6
  • Field of View: H: 83°, V: 42
  • Resolution: 8MP (3840×2160)
  • Frame Rate: AHD/TVI: 8MP @15fps/12.5fps, 5MP @20fps/12.5fps AHD/TVI/CVI: 4MP @25/30fps, CVBS: PAL/NTSC, CVBS: PAL/N
  • Video Output: Support AHD/TVI/CVI/CVBS Output
  • Day/Night: IR, Full color, Double LED, Close
  • OSD Menu: Support
  • Wide Dynamic Range: DWDR, OFF/ON
  • Gain Control: Auto
  • Noise Reduction: 2D DNR (AUTO/MANUAL 0-10)
  • White Balance: Auto
  • BLC: Support
  • Camera Power Supply: DC12V ±10%
  • Camera Power Consumption: Max. 5W (12V DC, IR ON)
  • Camera Operating Temperature: -40 °C ~ 55 °C (-40°F ~ 131 °F)
  • Operating Humidity: Less than 85% RH
  • Power Plug Type: Type B
  • Weather Resistance Rating (IP Rating): IP66
  • Certifications: CE/FCC
  • Casing: ABS
  • Camera Dimensions: 183.6 × 64.6 mm (7.23 × 2.55 in)
  •  Net Weight: 0.22 kg(0.48 lb)
Country of Origin
Made in China
