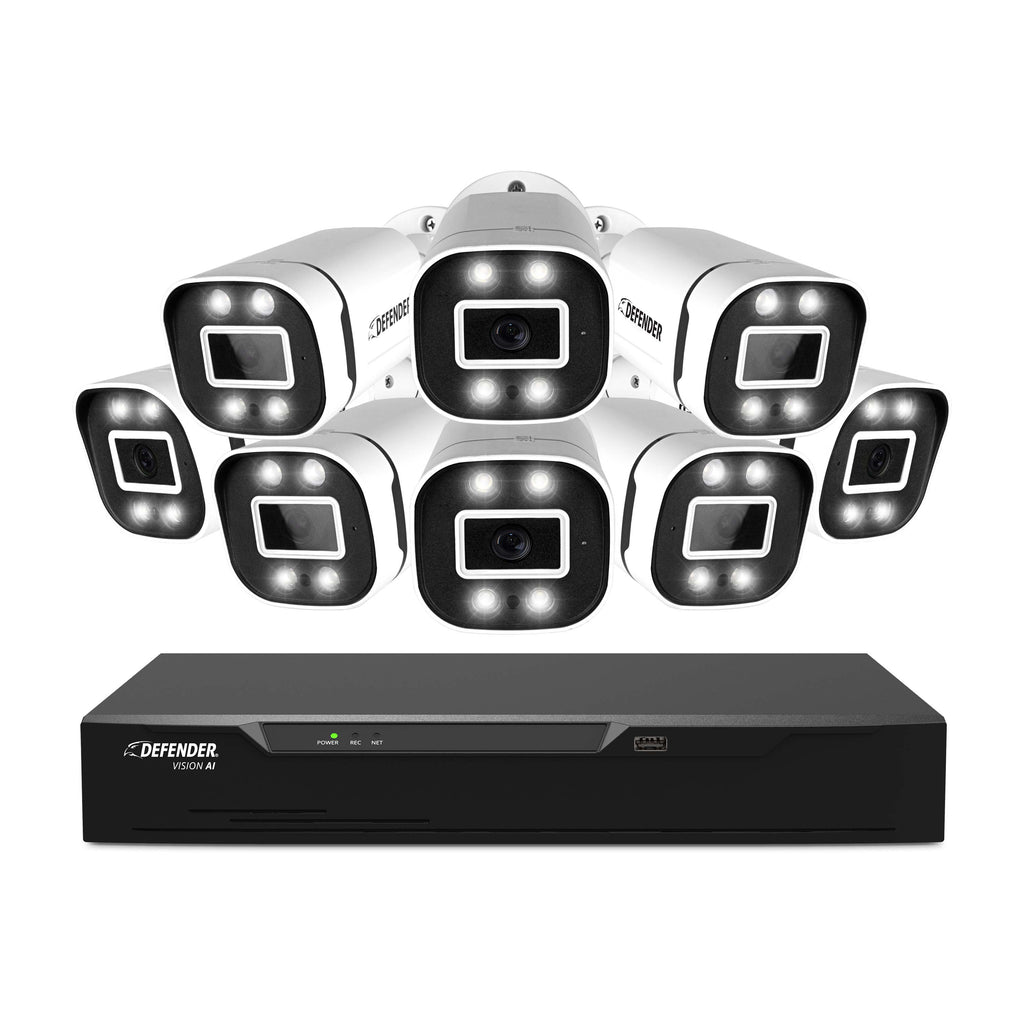

4K Vision AI Smart Artificial Intelligence DVR Security System With 8 Wired Deterrence Cameras

4K Vision AI Smart Artificial Intelligence DVR Security System With 8 Wired Deterrence Cameras
Regular price $499
Regular price $969 Sale price $499
Shipping calculated at checkout.
Regular price $499
Regular price $969 Sale price $499

What Customers Are Saying


  • GREAT CAMERA SYSTEM

    Got this system to replace my Defender system I installed 10 years ago. The new high def cameras are amazing. Thank you Defender

  • GREAT QUALITY AND CUSTOMER SERVICE!

    Our system came when they said it would with everything meticulously packaged. My husband was able to install everything with ease by using the specifically detailed startup guide.

  • WORTH THE MONEY, WOULD RECOMMEND THESE CAMERAS

    Love these cameras they light up at night and the quality of the pictures are incredible.

  • 8 Megapixel UHD Sensor

  • Smart Human & Vehicle Detection

  • Infrared LED Color Night Vision

  • No Contracts or Monthly Fees

  • 128-bit Bank-Level Encryption

  • Remote Mobile Viewing

4K ULTRA HD CLEARVU™ TECHNOLOGY

View your footage in brilliant detail and incredible clarity
with 4K ultra HD. Super clear video enables you to clearly see faces and licence plates for ultimate peace of mind.

4K ULTRA HD 1080P

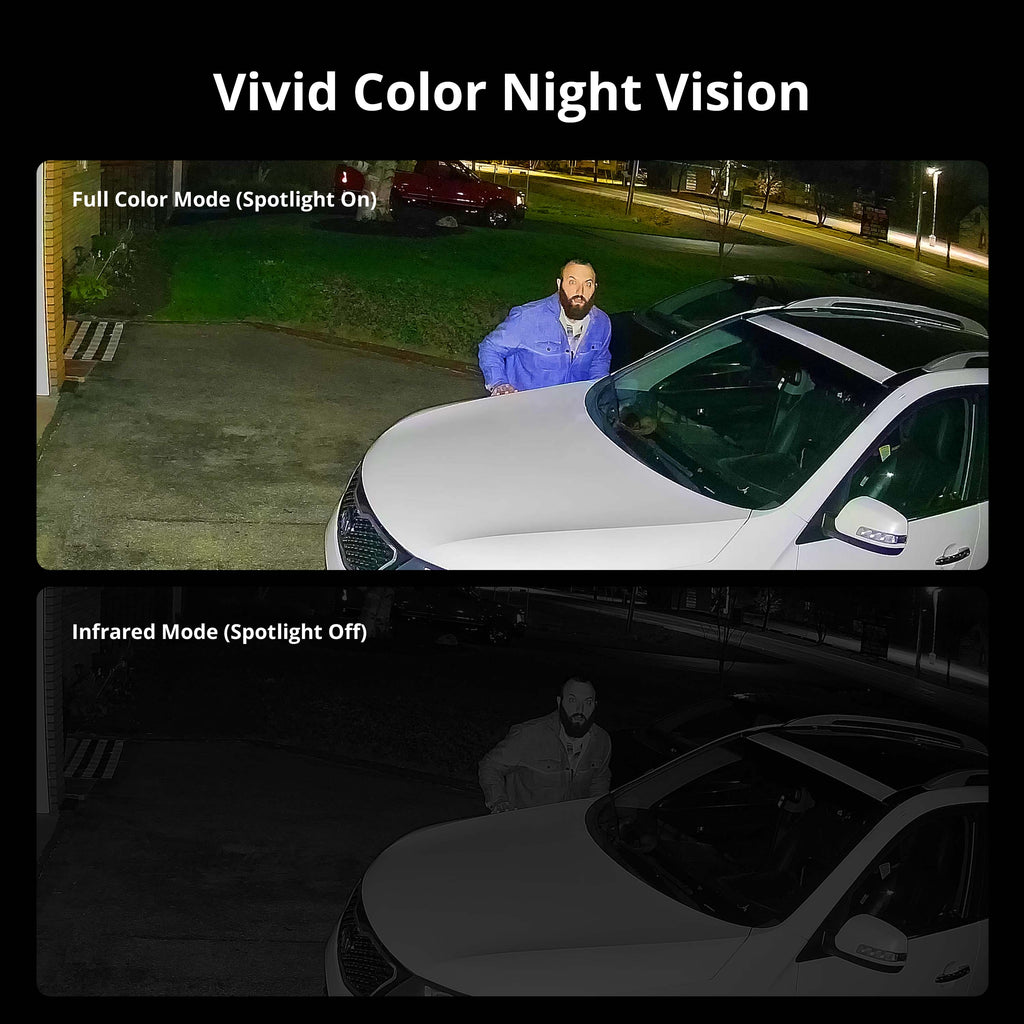

VIVID COLOR NIGHT VISION UP TO 66 FT

Laser sharp image sensors synergize with dual infrared LEDs to illuminate your parameters. View full-color footage even in pitch darkness.

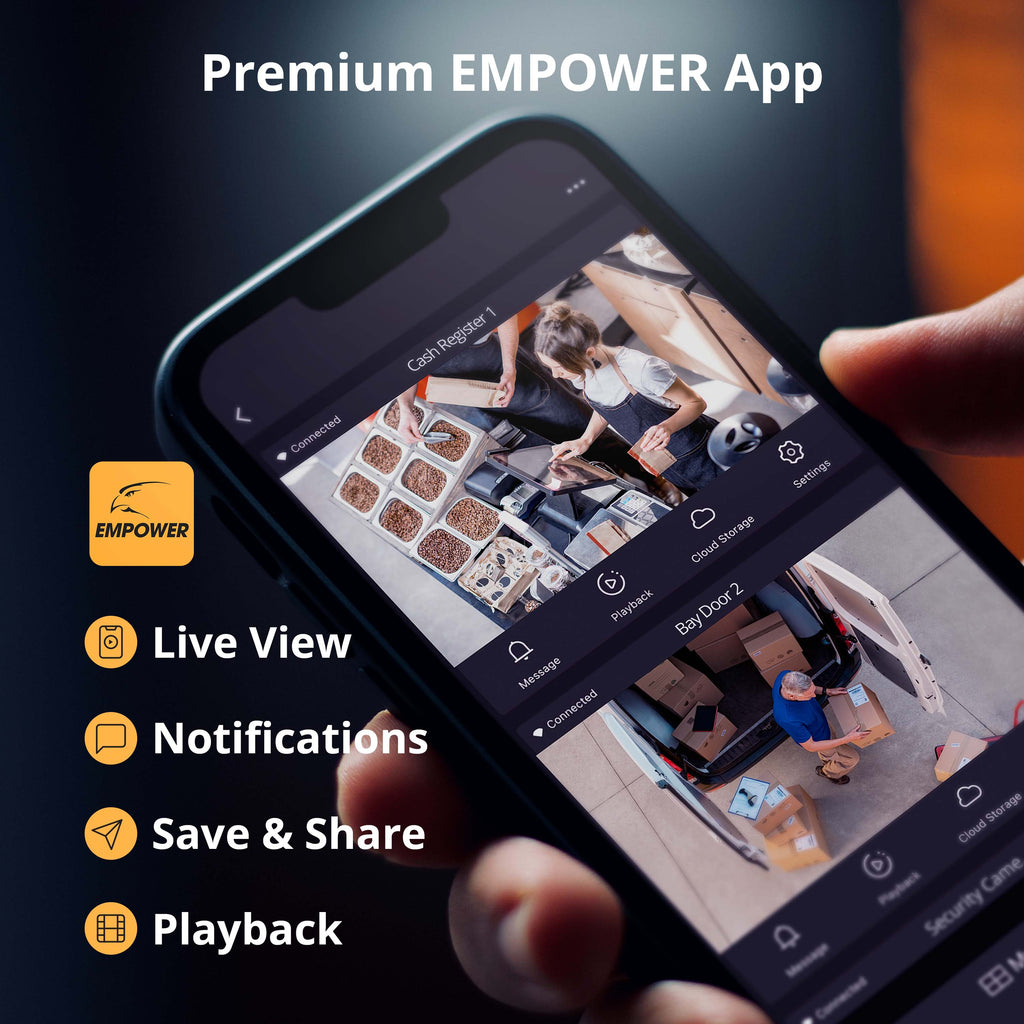

Premium EMPOWER App

KEEP WATCH 24/7

Enjoy live viewing, instant notifications, and instant playback. Save and share your footage with the simple-to-use, highly-rated Defender Empower app.

TECHNICAL

SPECIFICATIONS

Model number

DVAI8MP8B8

Technical specs


  • What's Included

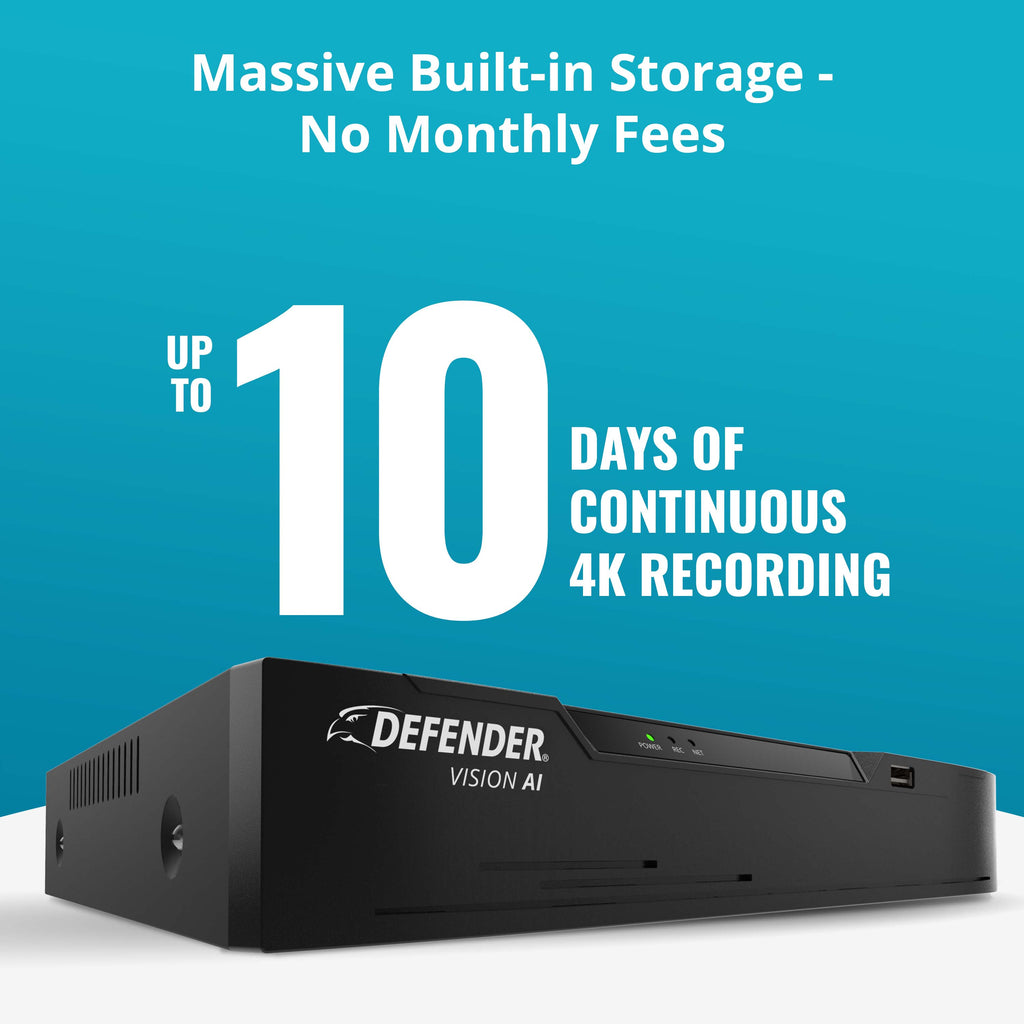

    1x 8 Channel DVR with Artificial Intelligence and 1TB HDD

    8x 4K 8MP Analog Camera

    8x Camera Mounting Hardware

    8x Drilling Template

    2x Camera Power Adapters (12V/2A)

    2x 4-Way Power Splitter

    8x 60ft BNC Cables

    1x Ethernet Cable

    1x DVR USB Mouse

    1x DVR Power Supply

    1x Window Warning Sticker (5” x 3”)

    1x Quick Start Guide

    1x Warranty Registration Insert

    Lifetime Live Chat Support

  • Video & Audio

    Analog Video Input: 8-ch BNC

    AHD Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P

    TVI Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P

    CVI Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P

    CVBS Input: PAL/NTSC

    IP Video Input: 16+8, each channel up to 8MP

    Audio In/Out: 4/1

    Two-way Talk: N/A

    HDMI Output: 3840×2160, 1920×1080, 1280×1024,1024×768

    VGA Output: 1920×1080, 1280×1024,1024×768

    CVBS Output: NA

    Synchronous Playback: 24/16/9/4/1

  • Recording

    Encoding Resolution: 8MP, 5MP, 4MP, 1080P, 720P, 960H, D1, CIF

    Frame Rate: 8MP@7fps, 4MP@15fps

    Video Bit Rate: Main Stream: 128Kbps~4096Kbps, Sub stream: 16Kbps~1024Kbps

    Dual Stream: Supported

  • Perimeter Protection

    Intrusion Detection: 8-ch, Support accurate detection of human and vehicle

  • Network

    Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface

    Protocols: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP

  • Hard Disk

    SATA: 1 SATA interfaces

    Capacity: Up to 8TB capacity for each disk

  • Interface

    Alarm In/Out: N/A

    USB Interface: 2 ports (USB 2.0 x 2)

  • General (NVR)

    Power Supply: DC12V/4A

    Power Consumption: Max 15W (without HDD)

    Working Temperature: -40 °C ~ 50 °C (-40 °F ~ 122 °F)

    Working Humidity: Less than 90% RH

    Dimensions (W×D×H): 350 x 305 x 49 mm (13.78 × 12.01 × 1.93 inch)

    Net Weight: 1.8 kg (3.97 lb)

  • Camera

    Image Sensor: 1/2.7” Progressive Scan CMOS

    Signal System: PAL/NTSC

    Electronic Shutter: Auto

    Min. illumination: Color:0.02Lux@ (F1.2,AGC ON) ;, B/W:0Lux@(IR LED ON)

    S/N Ratio: More than 50dB

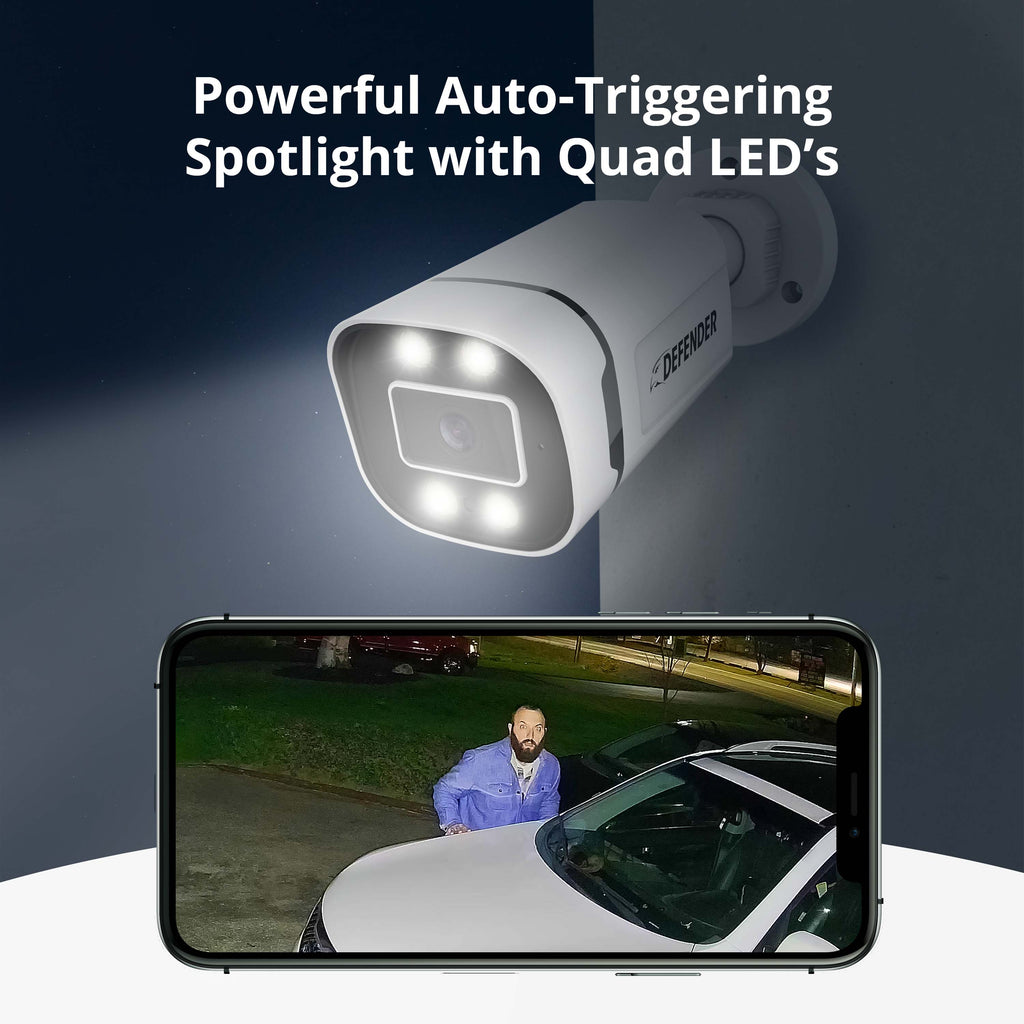

    Illumination Distance: IR distance up to 25m, warm light distance up to 20m

    Illumination On/Off Control: Auto/Manual

    Illumination Number: 4pcs (IR/Warm light)

    OSD Joystick: Optional

  • Lens

    Lens Type: Fixed focus

    Iris: Fixed Iris

    Focal Length: 3.6 mm

    Aperture: F1.6

    Field of View: H: 83°, V: 42

  • Video

    Resolution: 8MP (3840×2160)

    Frame Rate: AHD/TVI: 8MP @15fps/12.5fps, 5MP @20fps/12.5fps AHD/TVI/CVI: 4MP @25/30fps, CVBS: PAL/NTSC, CVBS: PAL/N

  • General (Camera)

    Camera Power Supply: DC12V ±10%

    Camera Power Consumption: Max. 5W (12V DC, IR ON)

    Camera Operating Temperature: -40 °C ~ 55 °C (-40°F ~ 131 °F)

    Operating Humidity: Less than 85% RH

    Power Plug Type: Type B

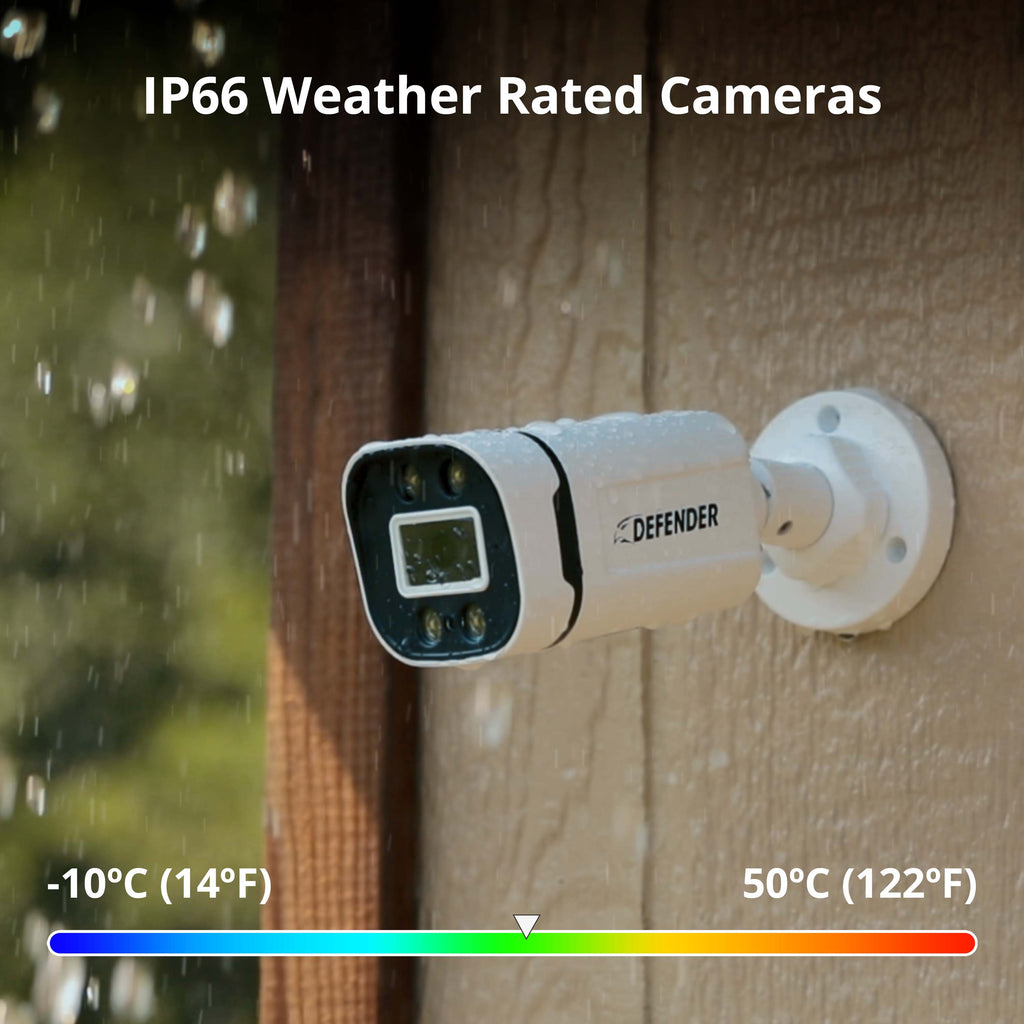

    Weather Resistance Rating (IP Rating): IP66

    Certifications: CE/FCC

    Casing: ABS

    Camera Dimensions: 183.6 × 64.6 mm (7.23 × 2.55 in)

     Net Weight: 0.22 kg(0.48 lb)

  • Country Of Origin

    China

VISION AI SUPPORT VIDEOS

FREQUENTLY ASKED QUESTIONS


DOES DEFENDER PROVIDE FREE SHIPPING?

We are proud to offer free ground shipping to our customers across the 10 Canadian provinces with no minimum purchase required. Free shipping is not available for the Canadian Territories and select areas considered remote by our shipping partners. Shipping fees will be calculated at the Checkout. Estimated delivery is 3-7 business days.

WHAT IS THE RETURN POLICY?

Not what you were expecting? Our no-questions-asked return policy makes it easy for you request a return within 30-days of placing your order. Please Note: Original shipping charges will not be refunded and return shipping costs are the responsibility of the customer.

WHAT IS DEFENDER'S PRICE MATCH GUARANTEE?

See a lower price on this item from an authorized retailer? Contact our Support Team here or chat live Monday to Friday from 8am-4pm EST with a link and screenshot to the advertised price and we will match it! Conditions apply. Learn more here.

ARE THESE 4K SECURITY SYSTEMS WIRELESS?

No. As most of our 4K security systems have more than 4 cameras, if they were to be wireless there would likely be interference and lag issues. To ensure an interference free experience and give you the option not to use W-Fi, our 4K Security Systems are a wired connection between the cameras and DVR.

CAN I ALLOW OTHER PEOPLE TO VIEW MY DVR REMOTELY?

Yes. You can share your Defender Empower App access with up to 20 additional users. Each user must download the Defender Empower App and create their own account before sharing access.

IS VISION AI COMPATIBLE WITH OTHER DEFENDER CAMERA SECURITY SYSTEMS?

No, Vision AI is not compatible with other Defender security systems. If replacing or adding additional cameras or DVR, check compatibility.

CAN I VIEW MY LIVE OR RECORDED FOOTAGE FROM A WEB BROWSER?

No, we do not offer web viewing. You can view the footage from the free Defender Empower App with compatible iOS/Android smart phones/tablets, and through a TV or monitor connected to the DVR.

CAN I EXTEND MY CAMERA’S BNC CABLE?

Yes, you can extend each camera to a maximum of 180 feet. We recommend using Defender’s certified authentic and genuine BNC cable when doing so.

HOW CAN I CHANGE THE LENGTH OF TIME BEFORE I AM AUTOMATICALLY SIGNED OUT OF MY DVR?

From the DVR, right click to access the main menu > select User Account under System > select Adv. Setting > toggle on “Enable Auto Login” or change Auto Logout Time (min) to 0 or your preferred duration > select Apply.

HOW CAN I DISABLE THE SETUP WIZARD?

From the DVR, right click to access the main menu > select User Account under System > select Adv. Setting > toggle off “Enable Setup Wizard” > select Apply.
